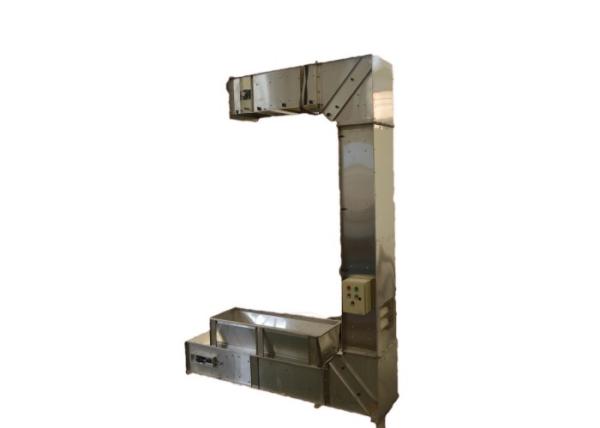

C Type Chain Bucket Elevator Bucket Conveyor For Grain Bean Candy
Product Description
C Type Chain Bucket Elevator Bucket Conveyor is specially designed for grain, beans, corn, vegetable seeds, etc, brittle granular material conveying. It has the advantage of stable operation and reliable performance, and its horizontal length and vertical height can be freely combined.
Main Parameters
| Model | FM-3B3 Bucket Elevator |
| Bucket Volume | 1.0L/1.8L/3.8L/6.5L |
| Machine Structure | 304 stainless steel or carbon steel |
| Production Cpacity | 2-3.5m³/h, 4-6.5m³/h, 6.5-8m³/h, 8.5-12m³/h |
| Machine Height | 3296mm(1.8L) |
| Discharging Height | 3256mm(1.8L) |
| Material Hopper | Food grade PP, ABS, stainless steel |
| Packing Size | 2050mmX1350mmX980mm |
| Voltage | AC220v PR Three phase 380V, 50hz |
| Power Supply | 0.75kw or as your requirement |
Features
1. The buckets are made of food grade reinforced polypropylene, molded in one piece and can handle temperature from -10 to 60 degrees centigrade.
2. The bucket elevators allow for controlled feeds at one or more locations and can easily interface with various types of feeding devices.
3. Easy to install and maintain.
4. All parts have easy to remove inspection covers and a conveniently located inspection window. The buckets have a quick release mechanism to facilitate fast installation or removal of buckets. All elevators are equipped with an automatic chain tensioning device and built-in overload protection.
Application
1. Chemical industry: bentonite,burnt lime,plastic granule.
2. Food industry: nut,sugar, rice,grain,flour,snacks.
3. Metallurgy, Mine industry: metal powder,screw.
4. Fertilizer industry: all kinds of fertilizer.
5. Waste treatment: cat sand,active carbon.
6. Medicine industry:all kinds of medicine.

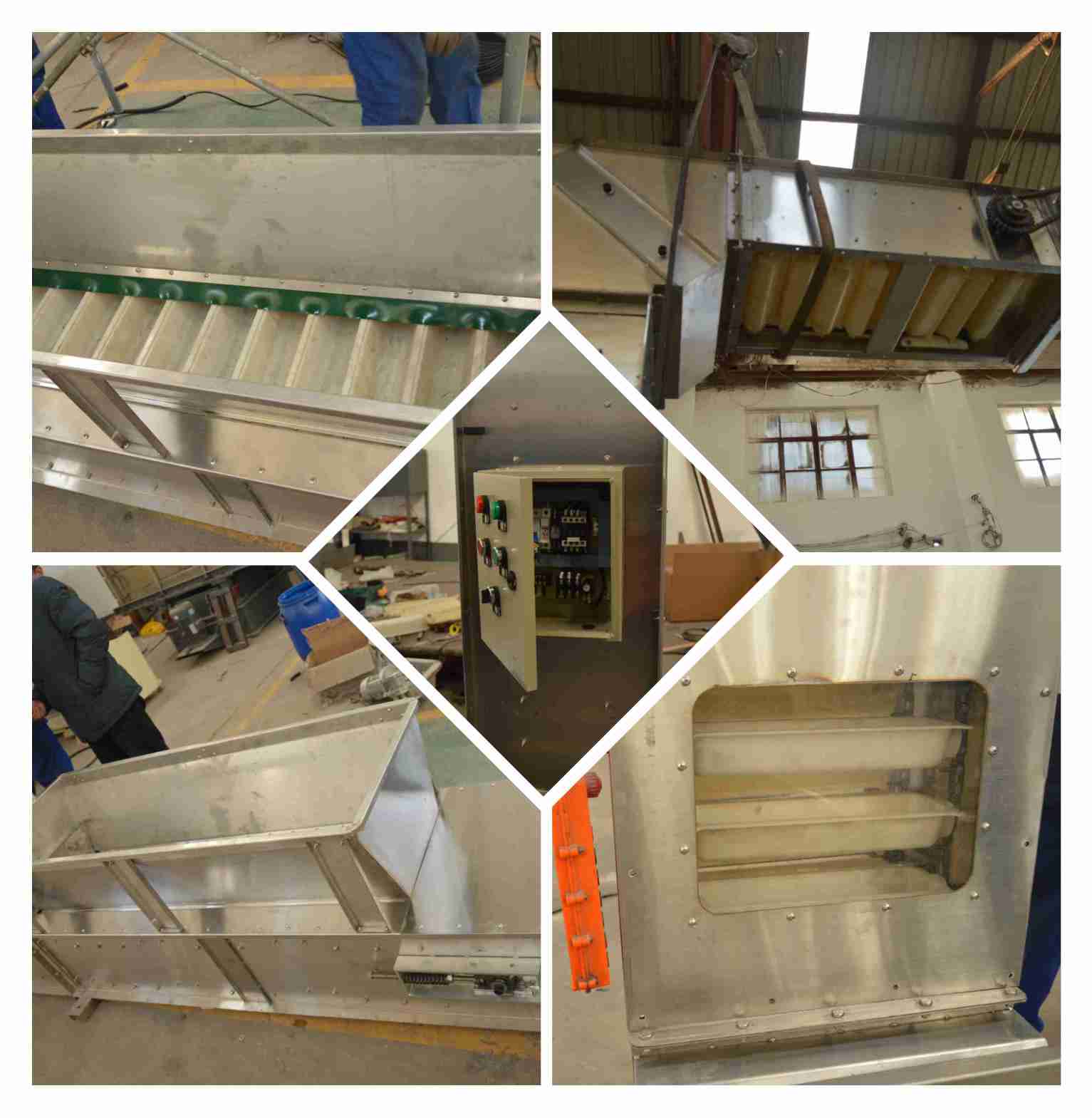

Details Show
Packing & Shipping
Well-designed packing and transportation ensure that the products can be delivered intactly to our customers.
